1.85mm (V) Female to Female precision adapter. DC to 67 GHz, 50 Ohm. IL ≤ 0.01 × √F(GHz) dB. Stainless steel, gold-plated BeCu contacts, PEI dielectric. IEEE STP P287.
P2RF185F-F-67
Description

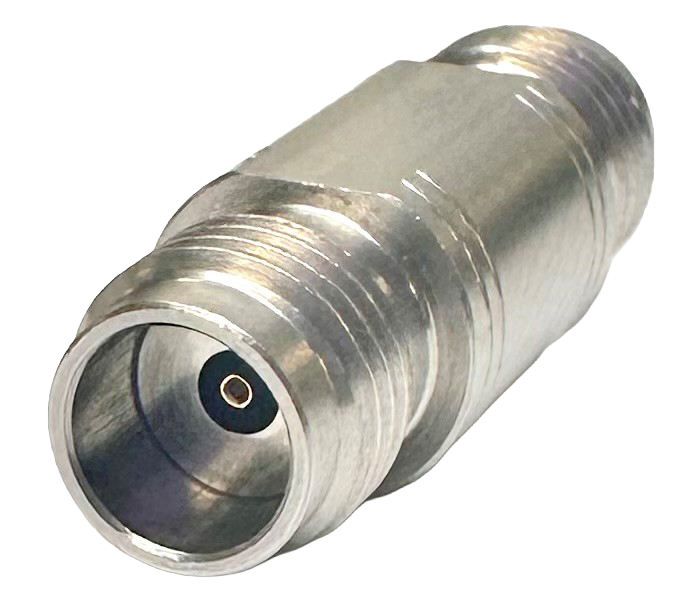

The P2RF185F-F-67 is a precision 1.85mm (V) Female-to-Female barrel adapter rated DC to 67 GHz. It connects two male-terminated 1.85mm cables or components in-line, extends a measurement path, or adapts between instruments without altering the signal chain gender. Insertion loss is specified as ≤ 0.01 × √F(GHz) dB — the tightest IL specification in the RFI mmWave adapter lineup, reflecting the precision air-line geometry required for a full 67 GHz F-F barrel. Rated for 1000 mating cycles — the highest durability rating in the 1.85mm series.
- DC to 67 GHz — Full 1.85mm (V) interface frequency range.
- 50 Ohm Impedance — Precision air-line geometry.
- VSWR ≤ 1.15 @ 67 GHz TYP.
- Insertion Loss ≤ 0.01 × √F(GHz) dB — Tightest IL spec in the mmWave lineup.
- 1000 Mating Cycles MIN — Highest durability in the 1.85mm series.
- Stainless Steel Body (Passivated).
- Gold-Plated BeCu Contacts.
- PEI Dielectric.
- Dielectric Withstanding: 2000 VRMS MIN.
- IEEE STP P287 Interface Standard.
- RoHS Compliant.
Additional information
| Interface 1 | 1.85mm Female (V) |
|---|---|
| Interface 2 | 1.85mm Female (V) |
| Gender Configuration | F-F (Female to Female / Barrel) |
| Frequency Range | |
| Impedance | |
| VSWR | |
| Insertion Loss | ≤ 0.01 × √F(GHz) dB |
| Dielectric | |
| Temperature Range | -40°C to +85°C |
Drawing
