Next Generation Direct Air Cooling (DAC)

Direct Air Cooling (DAC) is an industry-leading fan based direct air cooling system providing low-maintenance, energy-efficient and environmentally friendly cooling options for equipment cabinets and shelter enclosures. It works by bringing outside fresh air to the equipment in an energy-efficient, controlled and clean method.

DAC solutions from RFI consistently deliver clean, reliable cooling. They are proven to reduce cooling electricity by over 75% compared to traditional HVAC systems. They are DC powered thus eliminating interruptions during power outages. DACs qualify for energy rebates and green initiative programs.

DAC & HVAC Solutions

WALL MOUNTABLE DAC SYSTEM AF000401

Telecom Shelter Cooling System for Walls

  • Patented air-cooling system provides total environmental control for telecom shelters
  • Dual, variable speed, and high efficiency blowers apply positive pressure to the shelter
  • Includes a Deep Media Filter (MERV 16) (MERV 14 is available for non-coastal environments)
  • Fits HVAC return or supply opening (3 to 6 ton)
  • Regulated by the Smart Controller (part # AF000400) that controls up to 3 DAC fans and 2 HVAC units
  • Reduces compressor cycling, extends the life of HVACs and reduces HVAC maintenance costs

DOOR MOUNTABLE DAC SYSTEM AF000402

Telecom Shelter Cooling System for Doors

  • Patented air-cooling system provides total environmental control for telecom shelters
  • Dual, variable speed, and high efficiency blowers apply positive pressure to the shelter
  • Includes a Deep Media Filter (MERV 16) (MERV 14 is available)
  • Fits doors as narrow as 3’-0” width
  • Regulated by the Smart Controller (part # AF000400) that controls up to 3 DAC fans and 2 HVAC units
  • Reduces compressor cycling, extends the life of HVACs and reduces HVAC maintenance costs
  • Suitable for for harsh marine environments

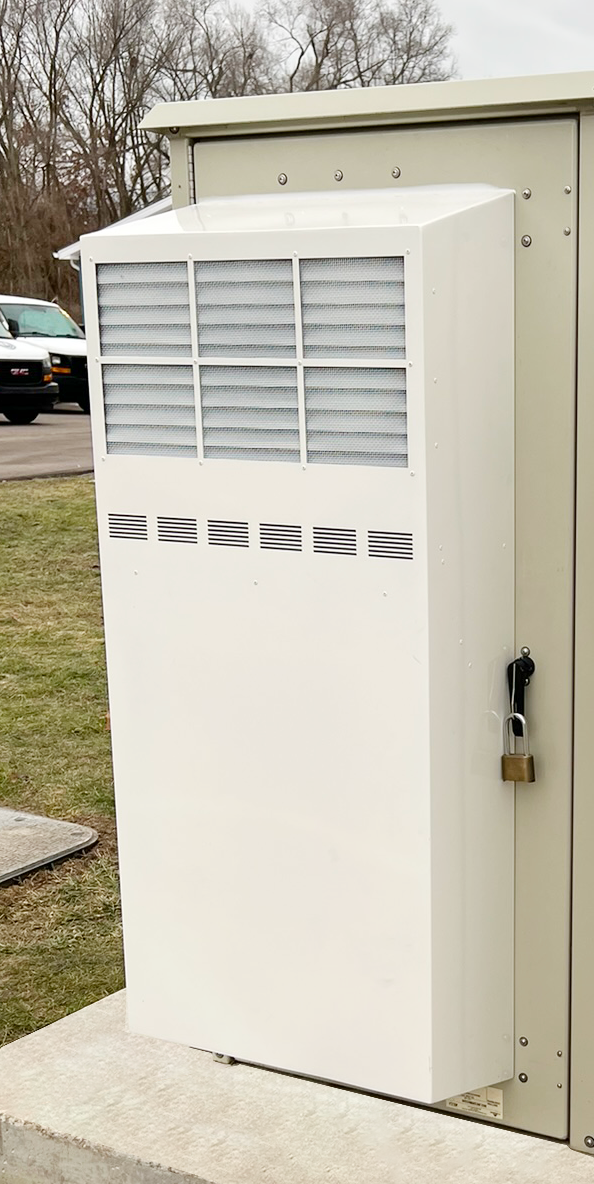

DAC CABINET KIT AF000190

Outdoor Telecom Cabinet Cooling System

  • Cools up to 4kW heat load cabinets using less than 250W with quad high efficiency fans, delta T as low as 5 degrees C.
  • Dust free system thanks to positive pressure applied to the cabinet and deep media long life telco grade air filters (MERV 14 or 16).
  • Modular platform can fit most cabinets with door panel larger than 24 (W) x 57 (H) inches (both units on same door) or as small as 24 (W) x 30 (H) inches (front & back installation).
  • Complete cooling kit for fast field cabinet upgrades. Kit includes Filter/Fan lower unit with hood, exhaust damper with hood (no cabinet front door panel).

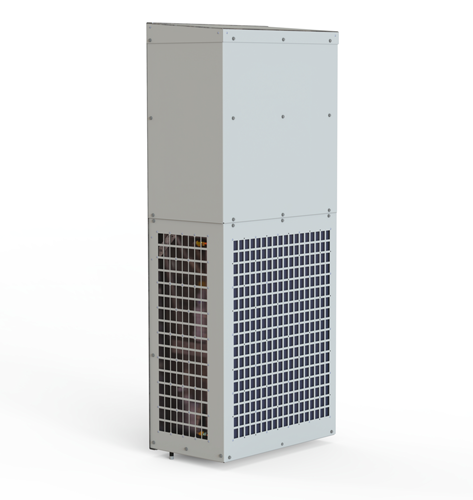

WALL MOUNTED AIR CONDITIONERS AF000404 & AF000405

-48 VDC Air Conditioners for Telecom WIC and Shelters

These AC units complement our Next Generation Direct Air Cooling Systems providing a complete end-to-end solution.

  • Small form factor, lightweight and designed for easy installation and maintenance
  • Rugged construction, all-weather resistant and suitable for harsh marine environments
  • Leverages success of commercial transportation HVAC designs
  • 100% DC powered – eliminates the need for inverters
  • Factory pre-charged with commercial R134a low-pressure refrigerant, eliminating leaks, reducing maintenance

COMBINED TEMPERATURE CONTROLLER AF000400 & AF000400-HC

Regulate DAC & HVAC in Shelters for Maximum Efficiency

  • Controls up to 3 DAC fans and 2 HVAC units
  • Provides site alarms for high & low temp, DAC, HVAC or controller failure
  • Compatible with AF000401 Wall DAC, AF000402 Door DAC and legacy AF000013 Door DAC (simple update kit is required)
  • Reduces HVAC compressor cycling to extend product life and reduce maintenance costs
  • Ethernet connectivity for additional monitoring alarming
