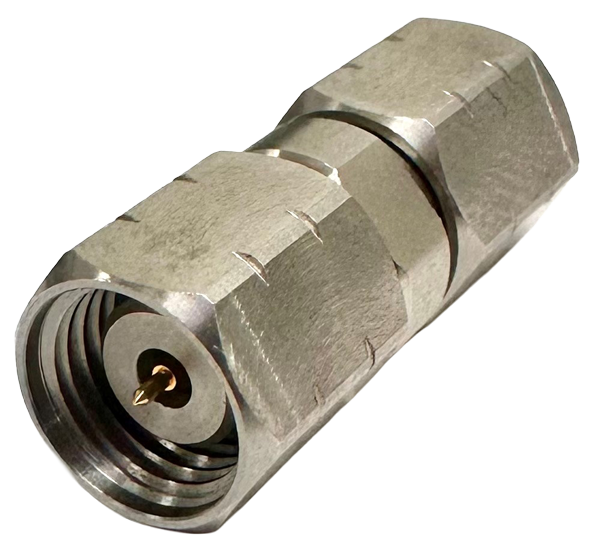

1.85mm (V) Male to Male precision adapter (barrel). DC to 67 GHz, 50 Ohm. IL ≤ 0.1 × √F(GHz) dB. VSWR ≤ 1.15. Connects two 1.85mm Female ports.
P2RF185M-M-67
Description
The P2RF185M-M-67 is a precision 1.85mm (V) Male-to-Male barrel adapter rated DC to 67 GHz. It connects two female-terminated 1.85mm ports — VNA test ports, DUT female interfaces, or female-terminated cables — maintaining the K interface geometry through 67 GHz. Insertion loss ≤ 0.1 × √F(GHz) dB. 500 mating cycles.
- DC to 67 GHz.
- M-M Barrel — Connects two 1.85mm Female ports.
- 50 Ohm Impedance.
- VSWR ≤ 1.15 @ 67 GHz TYP.
- Insertion Loss ≤ 0.1 × √F(GHz) dB.
- 500 Mating Cycles MIN.
- Stainless Steel Body (Passivated).
- Gold-Plated BeCu Contacts.
- PEI Dielectric.
- IEEE STP P287 Interface Standard.
- RoHS Compliant.
Additional information
| Interface 1 | 1.85mm Male (V) |
|---|---|
| Interface 2 | 1.85mm Male (V) |
| Gender Configuration | M-M (Male to Male / Barrel) |
| Frequency Range | |
| Impedance | |
| VSWR | |
| Insertion Loss | ≤ 0.1 × √F(GHz) dB |
| Dielectric | |
| Temperature Range | -40°C to +85°C |
Drawing
