2.92mm (K) Male to Male precision adapter (barrel). DC to 40 GHz, 50 Ohm. IL ≤ 0.05 × √F(GHz) dB MAX. VSWR ≤ 1.15. Connects two 2.92mm Female ports. MIL-STD-348B.
P2RF29M-M-40
Description

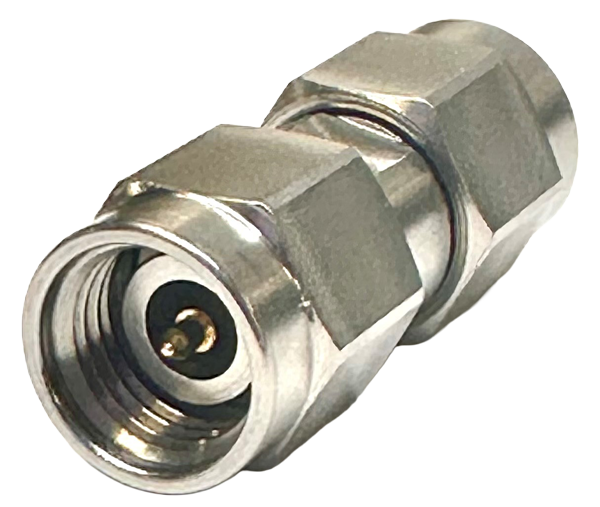

The P2RF29M-M-40 is a precision 2.92mm (K) Male-to-Male barrel adapter rated DC to 40 GHz. It connects two female-terminated 2.92mm ports — VNA test ports, female cables, or female DUT interfaces. Insertion loss ≤ 0.05 × √F(GHz) dB MAX. The 2.92mm K connector is mechanically compatible with SMA and 3.5mm interfaces. Rated for 100 mating cycles minimum.
- DC to 40 GHz.
- M-M Barrel — Connects two 2.92mm Female ports.
- 50 Ohm Impedance.
- VSWR ≤ 1.15 @ 40 GHz TYP.
- Insertion Loss ≤ 0.05 × √F(GHz) dB MAX.
- 2.92mm (K) Mechanical Compatibility — Also mates with SMA and 3.5mm interfaces.
- Stainless Steel Body (Passivated).
- Gold-Plated BeCu Contacts.
- PEI Dielectric.
- MIL-STD-348B Interface Standard.
- RoHS Compliant.
Additional information
| Interface 1 | 2.92mm Male (K) |
|---|---|
| Interface 2 | 2.92mm Male (K) |
| Gender Configuration | M-M (Male to Male / Barrel) |
| Frequency Range | |
| Impedance | |
| VSWR | |
| Insertion Loss | ≤ 0.05 × √F(GHz) dB MAX |
| Dielectric | |
| Temperature Range | -40°C to +85°C |
Drawing
