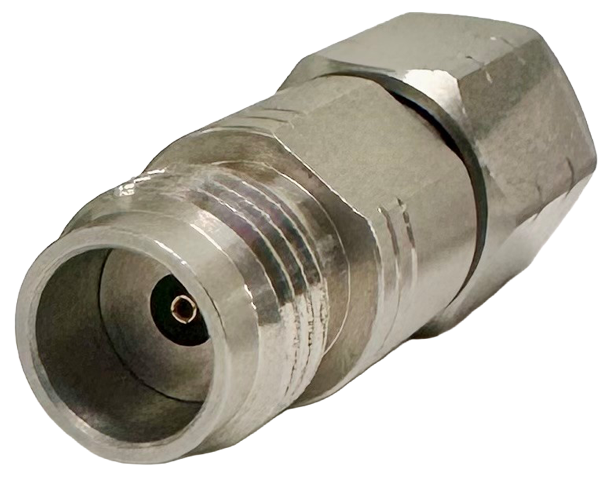

1.85mm (V) Male to Female precision adapter (gender changer). DC to 67 GHz, 50 Ohm. IL ≤ 0.1 × √F(GHz) dB. VSWR ≤ 1.15. Stainless steel, gold-plated BeCu contacts, PEI dielectric.
P2RF185M-F-67
Description
The P2RF185M-F-67 is a precision 1.85mm (V) Male-to-Female gender changer rated DC to 67 GHz. It resolves gender mismatches in 1.85mm signal chains — converting a male interface to female or female to male without breaking the 67 GHz precision signal path. Insertion loss is specified as ≤ 0.1 × √F(GHz) dB. Rated for 500 mating cycles.
- DC to 67 GHz.
- Gender Changer — 1.85mm Male to Female in-line conversion.
- 50 Ohm Impedance.
- VSWR ≤ 1.15 @ 67 GHz TYP.
- Insertion Loss ≤ 0.1 × √F(GHz) dB.
- 500 Mating Cycles MIN.
- Stainless Steel Body (Passivated).
- Gold-Plated BeCu Contacts.
- PEI Dielectric.
- IEEE STP P287 Interface Standard.
- RoHS Compliant.
Additional information
| Interface 1 | 1.85mm Male (V) |
|---|---|
| Interface 2 | 1.85mm Female (V) |
| Gender Configuration | M-F (Male to Female / Gender Changer) |
| Frequency Range | |
| Impedance | |
| VSWR | |
| Insertion Loss | ≤ 0.1 × √F(GHz) dB |
| Dielectric | |
| Temperature Range | -40°C to +85°C |
Drawing
