2.92mm (K) Female to Female precision adapter. DC to 40 GHz, 50 Ohm. IL ≤ 0.05 × √F(GHz) dB MAX. VSWR ≤ 1.15. Rated to +125°C. MIL-STD-348B.
P2RF29F-F-40
Description

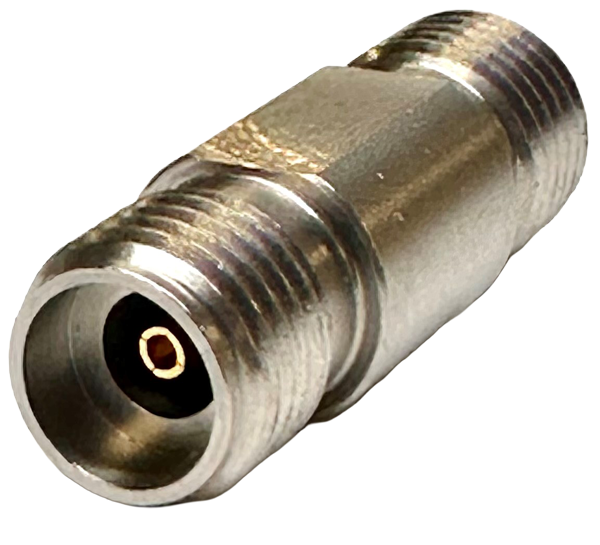

The P2RF29F-F-40 is a precision 2.92mm (K) Female-to-Female barrel adapter rated DC to 40 GHz. It connects two male-terminated 2.92mm cables or instruments in-line. Insertion loss ≤ 0.05 × √F(GHz) dB MAX, with a maximum operating temperature of +125°C — the widest temperature range in the 40 GHz series. The 2.92mm K connector is mechanically compatible with SMA and 3.5mm interfaces. Note: rated for 100 mating cycles minimum.
- DC to 40 GHz — Full 2.92mm (K) frequency range.
- 50 Ohm Impedance.
- VSWR ≤ 1.15 @ 40 GHz TYP.
- Insertion Loss ≤ 0.05 × √F(GHz) dB MAX.
- Operating Temperature to +125°C — Widest temp range in 40 GHz series.
- 2.92mm (K) Mechanical Compatibility — Also mates with SMA and 3.5mm interfaces.
- Stainless Steel Body (Passivated).
- Gold-Plated BeCu Contacts.
- PEI Dielectric.
- Dielectric Withstanding: 2000 VRMS MIN.
- MIL-STD-348B Interface Standard.
- RoHS Compliant.
Additional information
| Interface 1 | 2.92mm Female (K) |
|---|---|
| Interface 2 | 2.92mm Female (K) |
| Gender Configuration | F-F (Female to Female / Barrel) |
| Frequency Range | |
| Impedance | |
| VSWR | |
| Insertion Loss | ≤ 0.05 × √F(GHz) dB MAX |
| Dielectric | |
| Temperature Range | -40°C to +125°C |
Drawing
