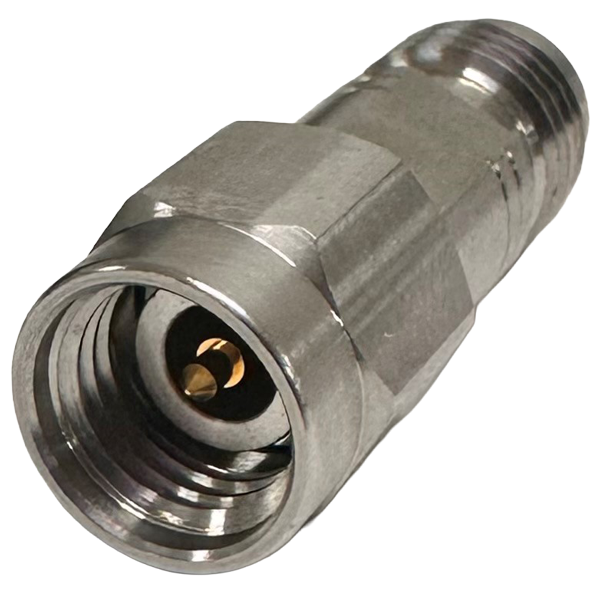

2.92mm (K) Male to 1.85mm (V) Female between-series precision adapter. DC to 40 GHz, 50 Ohm. IL ≤ 0.05 × √F(GHz) dB MAX. VSWR ≤ 1.15. 500 mating cycles.
P2RF29M-185F-40
Description
The P2RF29M-185F-40 bridges a 2.92mm (K) Male interface to a 1.85mm (V) Female interface — rated DC to 40 GHz. Used when a 2.92mm male cable or instrument port must connect to a 1.85mm female DUT or instrument interface. Insertion loss ≤ 0.05 × √F(GHz) dB MAX. 500 mating cycles minimum.
- DC to 40 GHz.
- 2.92mm (K) Male to 1.85mm (V) Female.
- 50 Ohm Impedance.
- VSWR ≤ 1.15 @ 40 GHz TYP.
- Insertion Loss ≤ 0.05 × √F(GHz) dB MAX.
- 500 Mating Cycles MIN.
- Stainless Steel Body (Passivated).
- Gold-Plated BeCu Contacts.
- PEI Dielectric.
- 1.85mm: IEEE STP P287 / 2.92mm: MIL-STD-348B.
- RoHS Compliant.
Additional information
| Interface 1 | 2.92mm Male (K) |
|---|---|
| Interface 2 | 1.85mm Female (V) |
| Gender Configuration | M-F (2.92mm Male to 1.85mm Female) |
| Frequency Range | |
| Impedance | |
| VSWR | |
| Insertion Loss | ≤ 0.05 × √F(GHz) dB MAX |
| Dielectric | |
| Temperature Range | -40°C to +85°C |
Drawing
