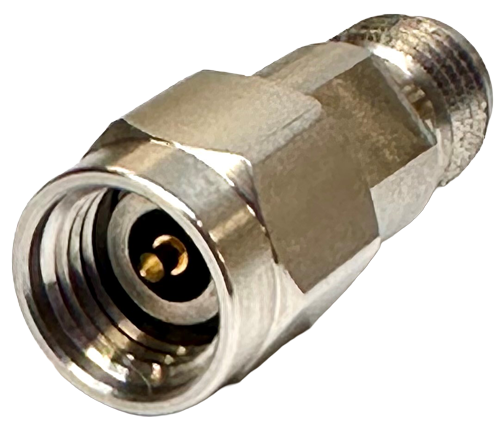

2.92mm (K) Male to Female precision adapter (gender changer). DC to 40 GHz, 50 Ohm. IL ≤ 0.12 × √F(GHz) dB MAX. VSWR ≤ 1.15. MIL-STD-348B.
P2RF29M-F-40
Description
The P2RF29M-F-40 is a precision 2.92mm (K) Male-to-Female gender changer rated DC to 40 GHz. It resolves gender mismatches in 2.92mm signal chains without compromising 40 GHz performance. Insertion loss is specified as ≤ 0.12 × √F(GHz) dB MAX — a higher IL coefficient than the F-F barrel, as is typical for M-F gender changer geometry at these frequencies. Rated for 100 mating cycles minimum.
- DC to 40 GHz.
- Gender Changer — 2.92mm Male to Female.
- 50 Ohm Impedance.
- VSWR ≤ 1.15 @ 40 GHz TYP.
- Insertion Loss ≤ 0.12 × √F(GHz) dB MAX — Note: higher IL coefficient than F-F barrel.
- Stainless Steel Body (Passivated).
- Gold-Plated BeCu Contacts.
- PEI Dielectric.
- MIL-STD-348B Interface Standard.
- RoHS Compliant.
Additional information
| Interface 1 | 2.92mm Male (K) |
|---|---|
| Interface 2 | 2.92mm Female (K) |
| Gender Configuration | M-F (Male to Female / Gender Changer) |
| Frequency Range | |
| Impedance | |
| VSWR | |
| Insertion Loss | ≤ 0.12 × √F(GHz) dB MAX |
| Dielectric | |
| Temperature Range | -40°C to +85°C |
Drawing
